PRO SERIES DL154

DL154 is a 2U 19" fixed-configuration rack I/O unit with 8 mic/line level inputs and 16 line level outputs and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL154 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Award-Winning MIDAS Microphone Preamplifier

The Midas microphone preamplifier is considered by leading live sound and recording engineers to be the very essence of the famous Midas sound. More than 40 years of design experience paired with the finest choice of premium-grade components lead to the acclaimed warmth and depth - bringing out subtle ambience, maintaining spatial positioning and more effectively capturing a precise sound image. The acclaimed sound of the award-winning Midas microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic panoramas that have captivated audiences worldwide. Since pristine sound always begins with the microphone preamplifier, the first point where the signal enters the console, DL154 features the latest generation of Midas microphone preamplifiers, which faithfully reproduce every sonic detail so no part of a performance will ever be missed. Transparent and pristine sound, low noise and high common-mode rejection are all hallmarks of this classic design. Over the years many mix engineers have found this robust and overload-tolerant design takes on a whole new dimension of sound when driven hard, the crystal-clear audiophile reproduction giving way to just the right combination of harmonics, a warm and organic sound heard by millions of concert goers and recorded for posterity on countless live albums over the years.

Digital Audio Networking

SuperMAC (AES50-Compliant) digital audio networking technology from Klark Teknik simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring. DL154 is compatible with all Midas digital consoles and audio system engines, as well as with any other AES50-equipped devices.

High Output Drive Line Outputs with Mute

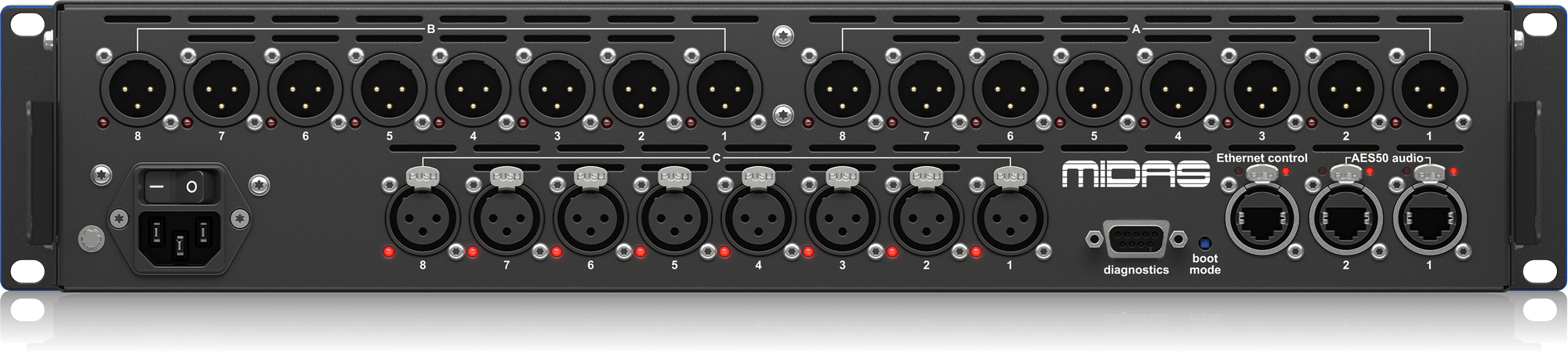

DL154 features 16 active servo-balanced low impedance line level outputs with high output current capability for driving long cable runs. The outputs feature an automatic mute facility if the audio signal path is muted by the mixing console operator, and individual LED indicators are provided for each output connector.

96 kHz or 48 kHz Operation

DL154 supports multiple sample rates for the AES50 connections - 96 kHz for use with Midas PRO Series, and 48 kHz for use with Midas M32 Series.

Remote Console or Front Panel Control

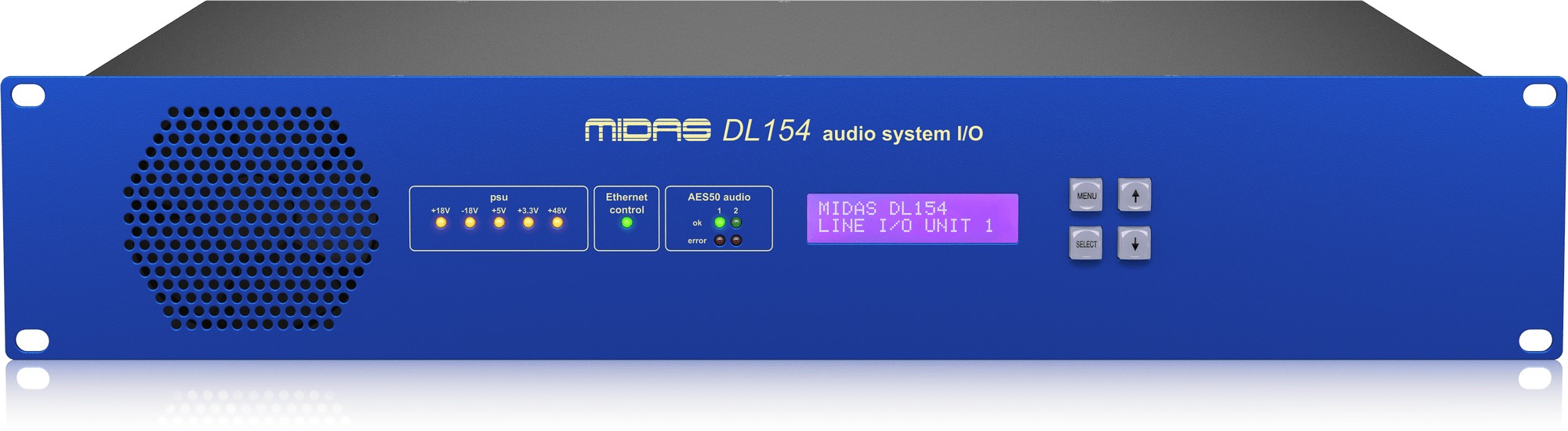

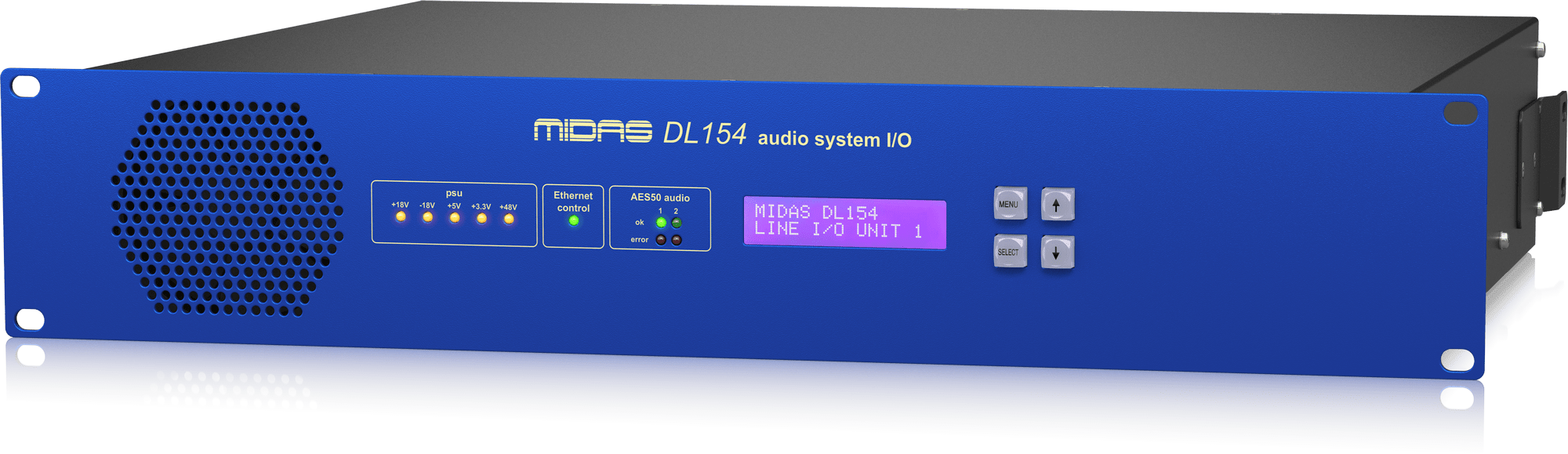

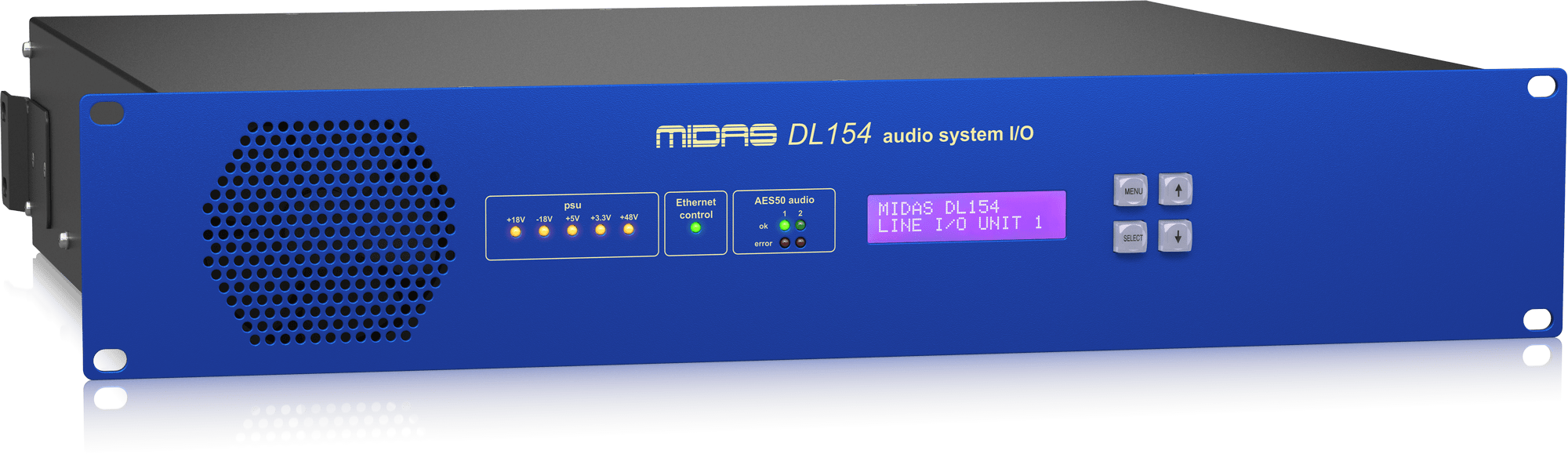

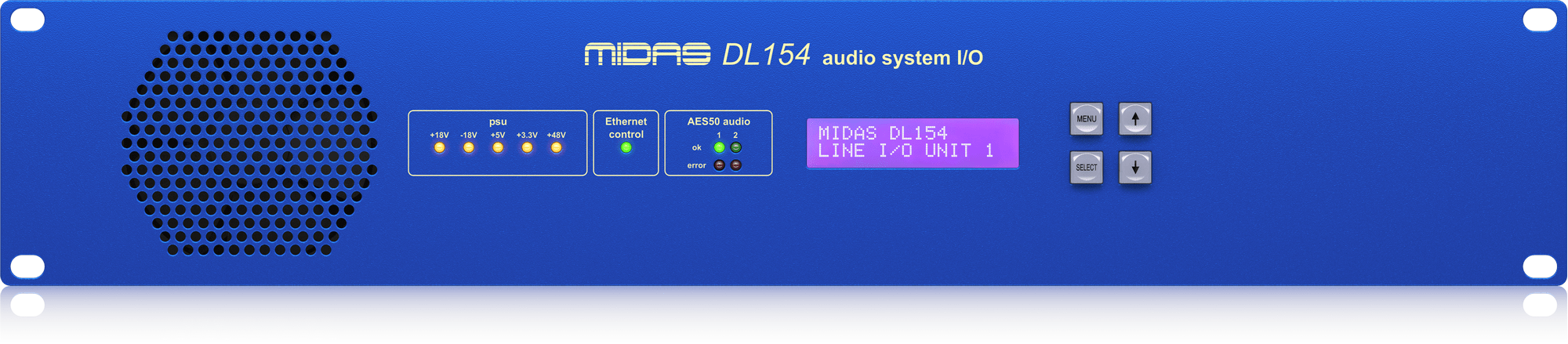

All configuration settings for DL154 can be set either remotely from the mixing console, or directly via the intuitive and easy to understand front panel. DL154 features a front panel LCD display with intuitive menu navigation for all configuration options with LED status indicators, which provide clear feedback of operational status over wide viewing angles and distances. Clear indication is provided showing power supply output rail condition and AES50 and Ethernet network connection status and activity.

Built for the Road

Featuring a rugged steel 2U rackmount enclosure, the DL154 is designed for the rigours of live concert touring. Premium industry-standard connectors are used for reliable audio and network connections, night after night.

Auto-Ranging Universal Switch-Mode Power Supply

DL154 features a universal power supply, which is auto-voltage sensing for use on a worldwide basis.

Architecture & Engineering Specifications

The interface unit shall be designed for digital audio mixing applications and be optimised for use in live performance. It shall feature 8 integrated microphone preamplifier inputs with 2.5 dB analogue gain steps and 16 servo-balanced electronic outputs on industry-standard XLR connectors and shall be capable of operating at 48 kHz and 96 kHz sampling rates. The interface unit shall have LED indication for +48V phantom power for each input channel connector The interface unit shall include an automatic output mute function if the audio signal path is muted via the control centre and shall have LED indication for output mute for each output channel connector. The interface unit shall support a 100 Megabit Ethernet frame-based digital audio network that shall off er dual cable redundancy and be compliant with the Audio Engineering Society AES50-2011 standard. Two digital audio network ports and one Ethernet control port shall be provided. The interface unit shall provide both front panel and remote network configuration of operational settings and provide an alphanumeric LCD display with associated menu navigation buttons, and LED status indication of power supply output rail condition and digital audio and control network connection status and activity. The interface unit shall include an auto-ranging universal switch-mode power supply for use on a worldwide basis. The interface unit shall be housed in a standard 2U 19" rackmount chassis, and shall be 483 mm wide x 376 mm deep x 88 mm high (19.0" x 14.8" x 3.5"), with nominal weight 6.9 kg (15.2 lbs). The interface unit shall be installed in a rack frame or road case capable of safely supporting its weight. Input, output, and power connections shall be made at the rear panel of the interface unit. Installers shall allow adequate space at the rear for connection and disconnection of input, output, and power connections. The power requirements shall be 100 to 240 VAC, 50 to 60 Hz. The interface unit shall be the Midas DL154 and no other alternative shall be acceptable.
