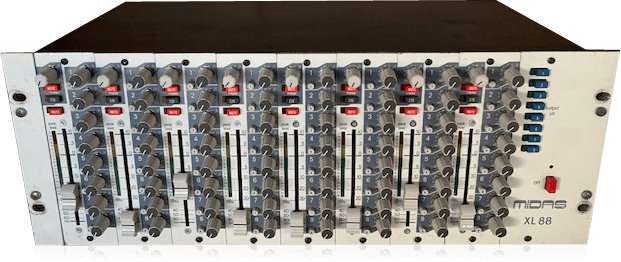

XL88 — 8 x 8 Matrix Mixer. Console-Grade. Rack-Mount.

The XL88 takes the matrix section of a flagship Midas console and delivers it as a standalone 4U rack unit. Eight balanced inputs, eight matrix outputs, eight direct outputs — line-level expansion for any console that needed eight fully independent zone or fill mixes.

Console-Section Quality in a 4U Frame

Eight balanced inputs (20 kΩ balanced, 10 kΩ unbalanced) feed eight matrix outputs and eight direct outputs at console-grade audio performance: <0.01% THD @ 1 kHz, +21 dBm maximum level, frequency response 20 Hz - 20 kHz (+0.5 dB), equivalent input noise below -94 dB. Crosstalk specified at -100 dBu channel-to-channel. A 20-segment LED bargraph switchable between direct and matrix output, plus PFL on all inputs and matrix outputs.

Specification Highlights

• 8 x 8 line-level matrix mixer
• 4U 19-inch steel rack-mount chassis
• 8 balanced XLR inputs, 8 matrix outputs, 8 direct outputs
• Maximum level: +21 dBm
• THD: <0.01% @ 1 kHz
• Frequency response: 20 Hz - 20 kHz (+0.5 dB)
• Equivalent input noise: <-94 dB
• Crosstalk: -100 dBu channel-to-channel
• 20-segment LED bargraph metering, switchable
• PFL on all inputs and matrix outputs
• Universal mains 110/120/220/240 V, <45 VA
• Dimensions: 482 x 205 x 176 mm; weight 8 kg

Who It's For

This product is obsolete. Original XL88 units remain in service expanding the matrix capability of vintage Midas analogue consoles in installs and broadcast facilities.
