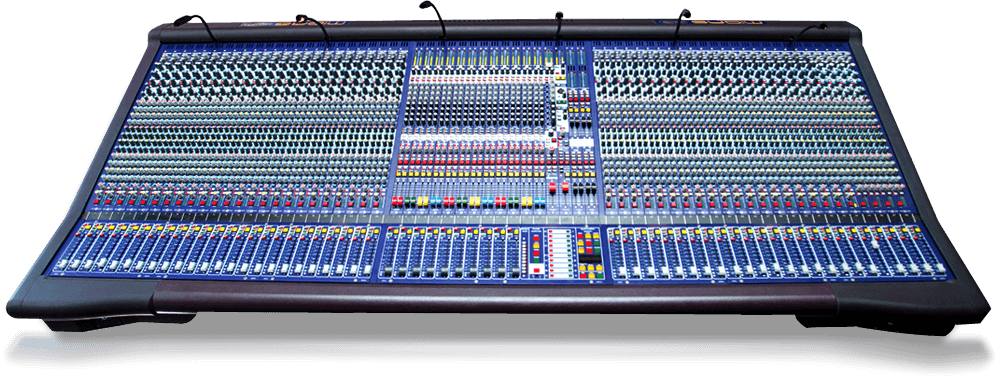

H3000 — The Heritage Flagship. Twenty-Four Auxes. Tour-Defining Sound.

The Heritage 3000 is the console that defined a generation of front-of-house. Twenty-four mix sends configurable per pair as audio subgroups, aux sends or stereo aux. A 27 x 8 matrix derived from the 24 mix sends plus L/R/Mono masters. Ten VCA master faders, ten mute masters. The desk you saw under the wing at every major tour for two decades.

Twenty-Four Mix Sends. Configurable Per Pair.

Each pair of outputs flexes between two audio subgroups, two aux sends, or one stereo aux (level/pan) — front-of-house or monitor mixing from the same chassis. Eight matrix outputs derive from the 24 mix sends and L/R/Mono masters, forming a 27 x 8 matrix for centre clusters, fills, delays and broadcast feeds.

Heritage Preamp. L/C/R Master Section.

Award-winning Midas microphone preamplifiers across every channel. A 3-fader L/C/R master output section feeds the room. Frame sizes from 48 to 56 input channels.

Specification Highlights

• Large-format analogue console, Heritage Series flagship
• 24 mix sends, configurable as subgroup/aux/stereo aux per pair
• 27 x 8 matrix from mix sends + L/R/Mono masters
• 10 VCA master faders, 10 mute masters
• 3-fader L/C/R master output section
• Frame sizes from 48 to 56 input channels
• Midas microphone preamplifiers
• Designed and engineered in the U.K.

Who It's For

This product is obsolete. Original H3000 units remain on the road and in flagship installations worldwide — still in service with engineers who refuse to mix on anything else. Reference current Midas digital flagships for the modern successor lineage.
