HD96-24-CC-TP

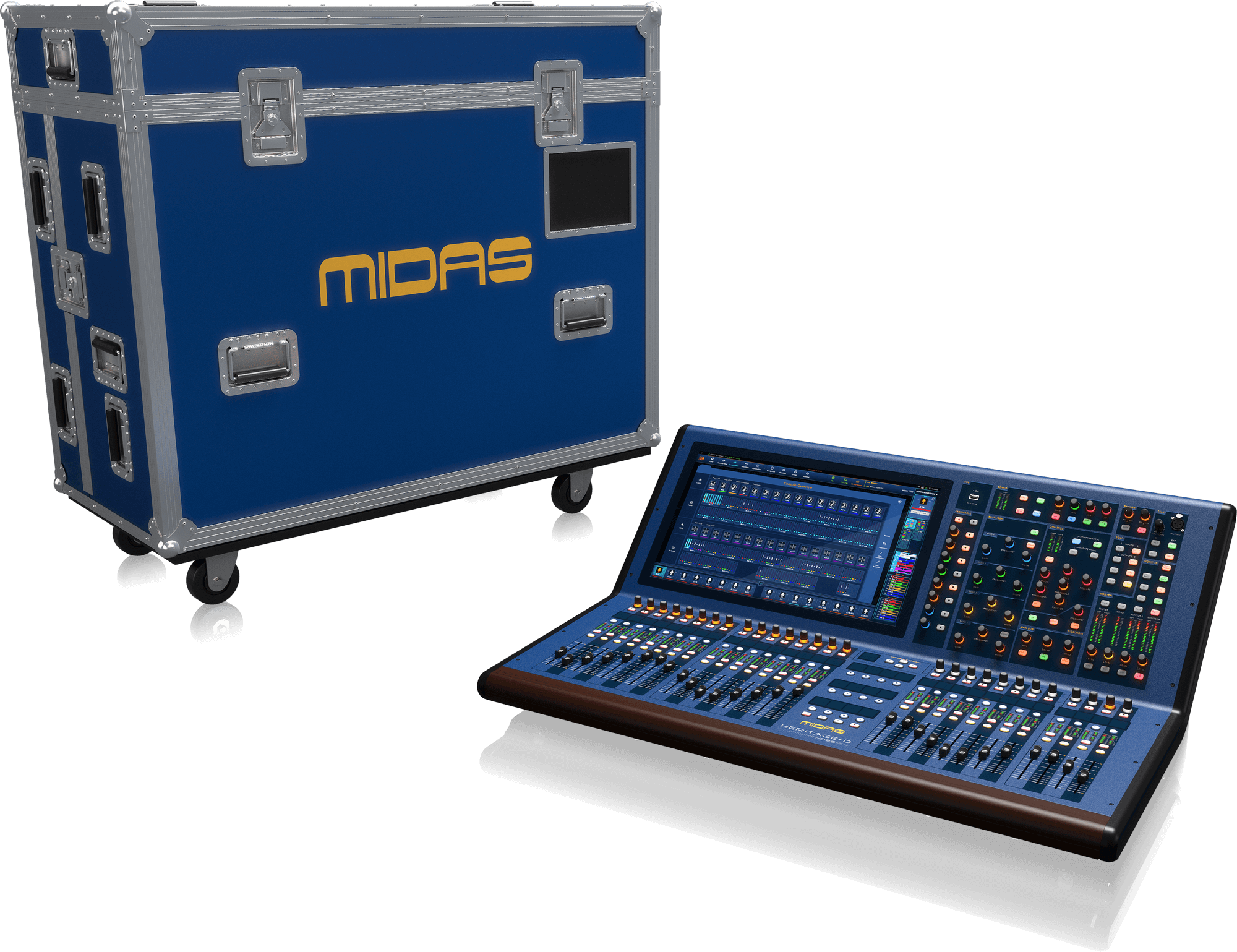

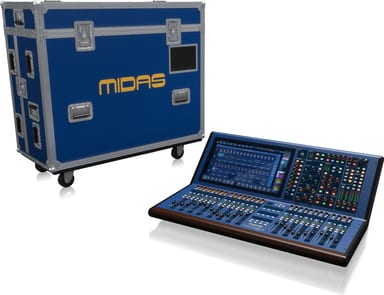

Live digital console with 144 input channels, 120 mix buses, 96 kHz sample rate and a touring grade road case

Where to buy HD96-24-CC-TP (0603-AED)
HD96-24-CC-TP, image 1 of 5
HD96-24-CC-TP, image 2 of 5
HD96-24-CC-TP, image 3 of 5
HD96-24-CC-TP, image 4 of 5
HD96-24-CC-TP, image 5 of 5
HD96-24-CC-TP, image 1 of 5

1 of 5

Where to buy HD96-24-CC-TP (0603-AED)

Log in at the venue and your show is waiting.

Touring engineers mix in rooms they have never seen, after changeovers that leave no time to spare. The Midas mCloud stores your show files and presets. Left the USB stick at home? Log into your mCloud account and load the show straight to the console.

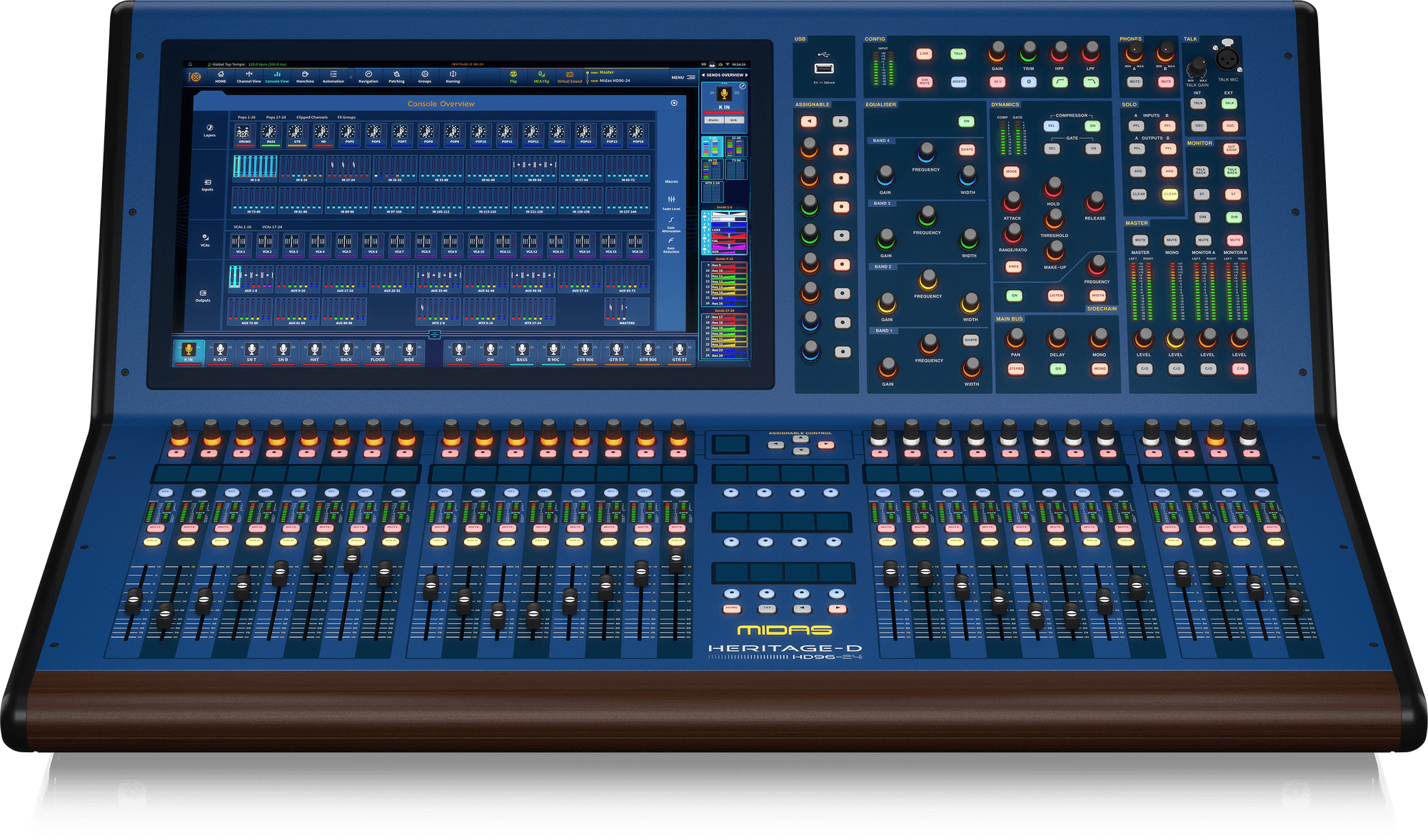

Both hands on the mix

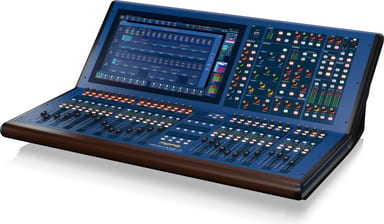

The large touch screen accepts up to 10 simultaneous touches. Use both hands to move up to 10 faders at a time. The surface adds 28 motorised 100 mm faders. Alongside 24 VCA groups, 24 POPulation groups bring or recall paths to the surface or screen.

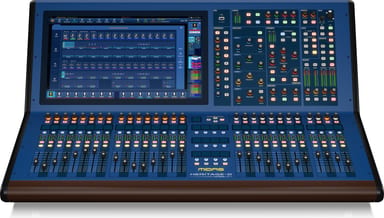

HD96-24-CC-TP, image 2 of 5

Every input gets its own place

Mix 144 input channels into 96 flexi aux outputs, 24 matrices, a stereo bus and a mono bus. The buses are time-aligned and phase-coherent, with no stealing of resources. Processing runs at 96 kHz in 64-bit floating point.

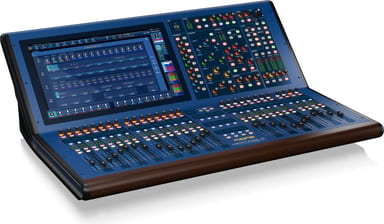

HD96-24-CC-TP, image 3 of 5

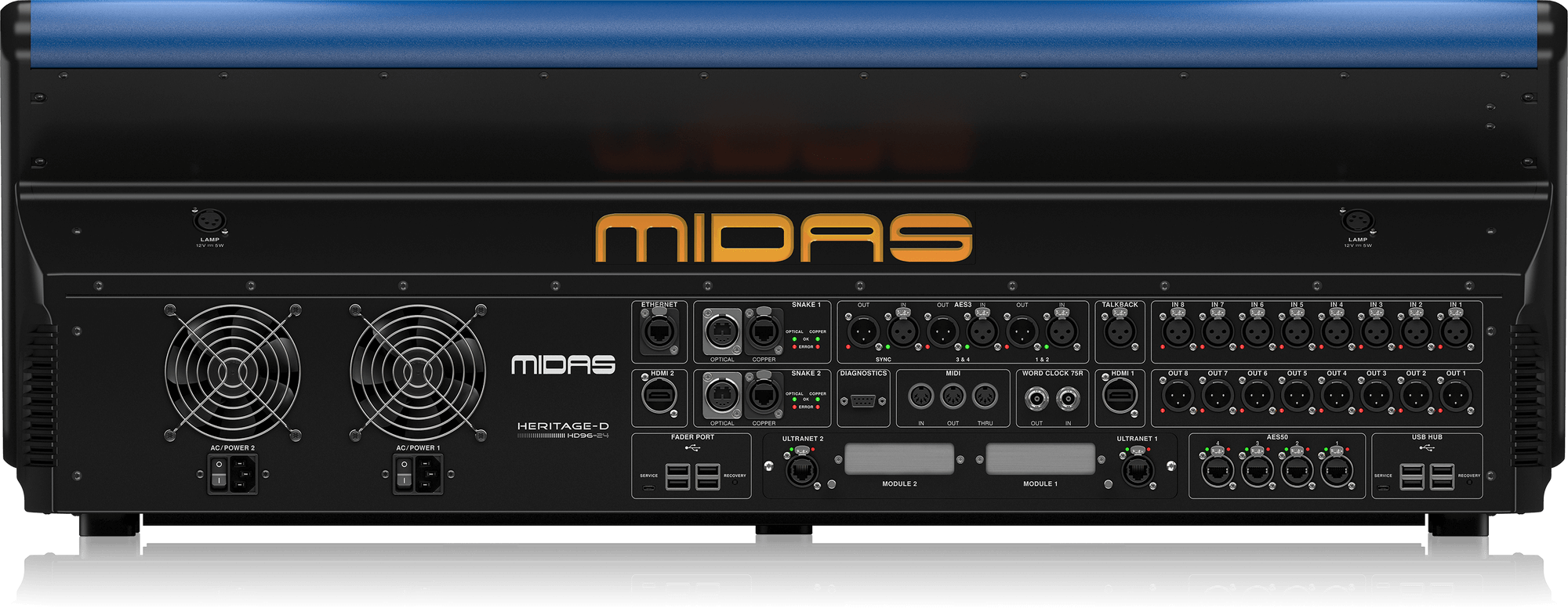

A network you can double

The digital snake runs over HyperMac on copper or fibre, with 192 channels per snake connection. All system connections can be duplicated for full dual redundancy. Two CM-1 slots add up to 128 more channels of I/O.

Designed for touring, and suited to theatre, house of worship installations and broadcast.

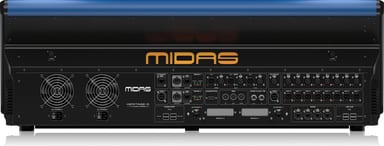

HD96-24-CC-TP, image 4 of 5
