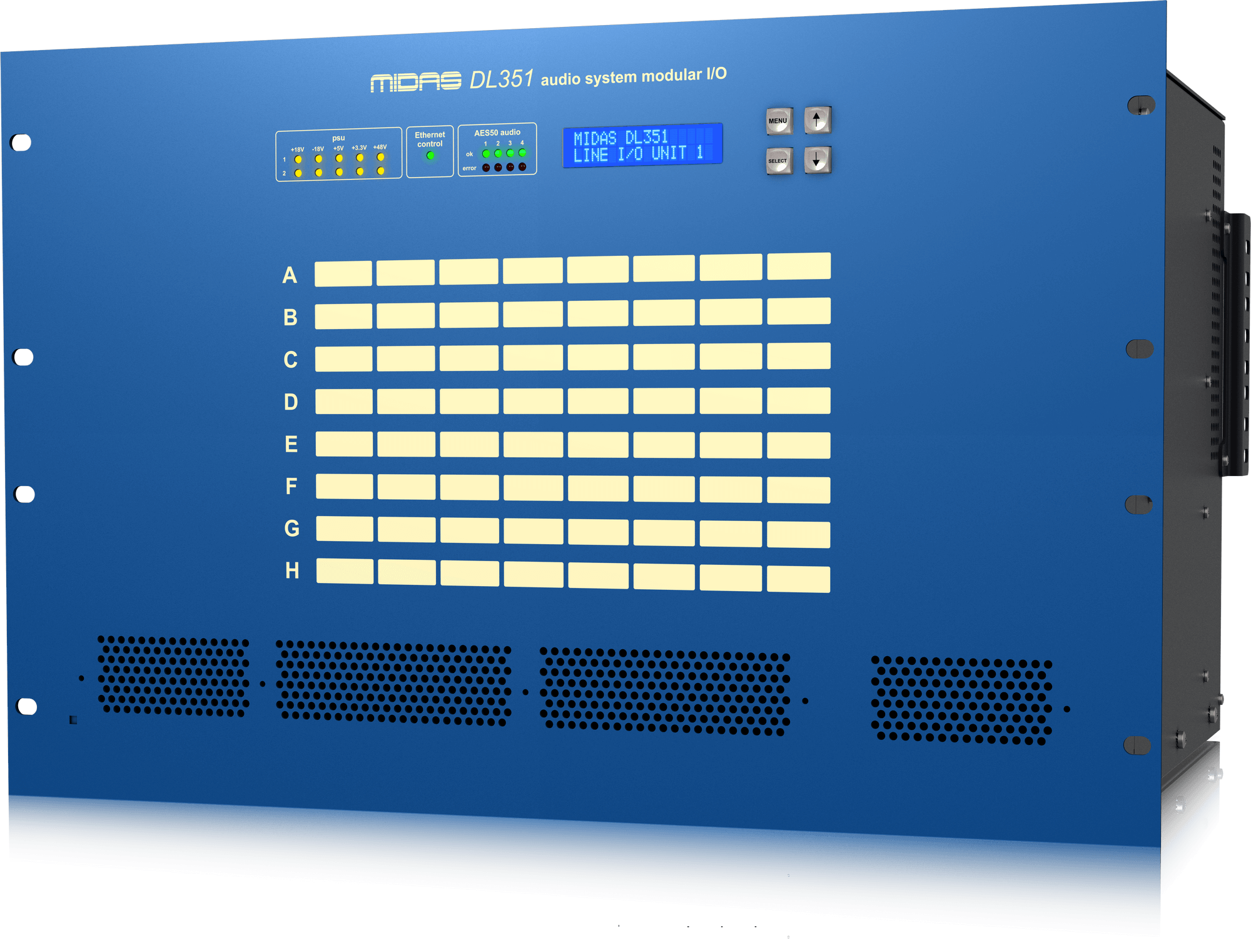

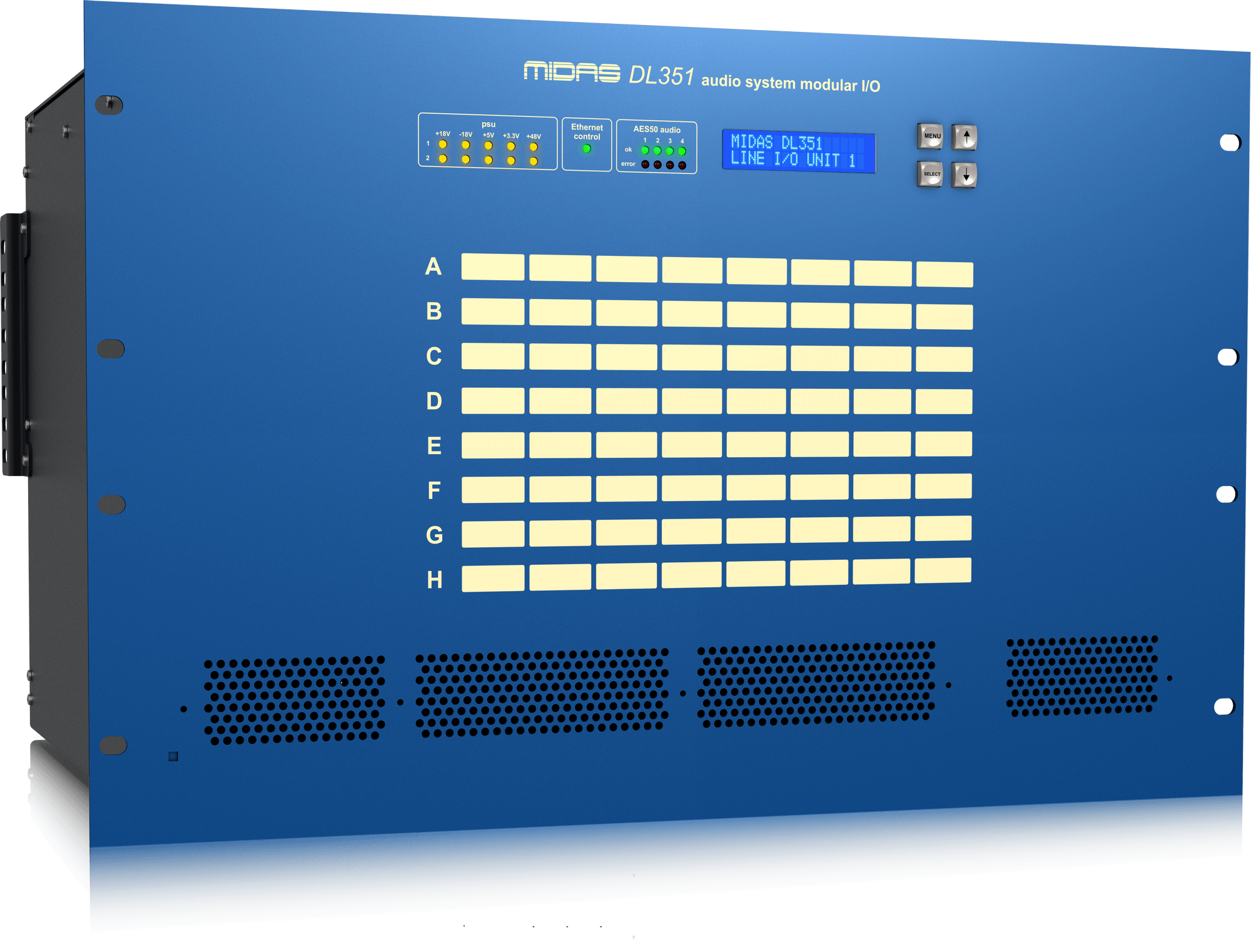

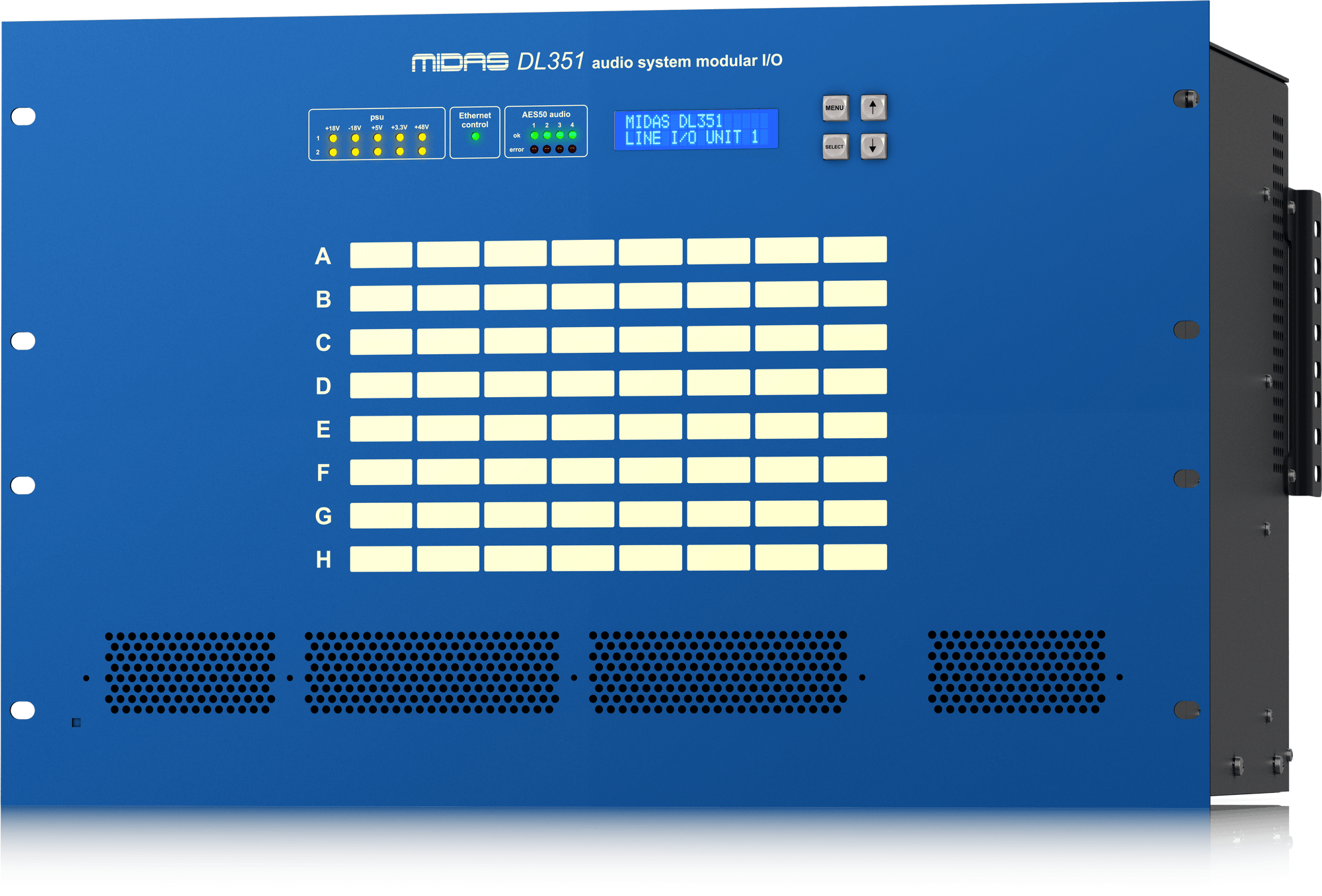

Modular Stage Box for Pro Series Systems

The DL351 is a touring-grade modular stage box for Midas Pro Series live audio systems. Eight DL4 series I/O card slots let you configure up to 64 audio inputs and 64 audio outputs in any combination — the same chassis can be a 32-in / 32-out drum-riser box one night and a 64-out broadcast feed the next. Every channel runs at 24-bit / 96 kHz with the audio integrity that defines the Midas name.

Redundant Networking & Show Control

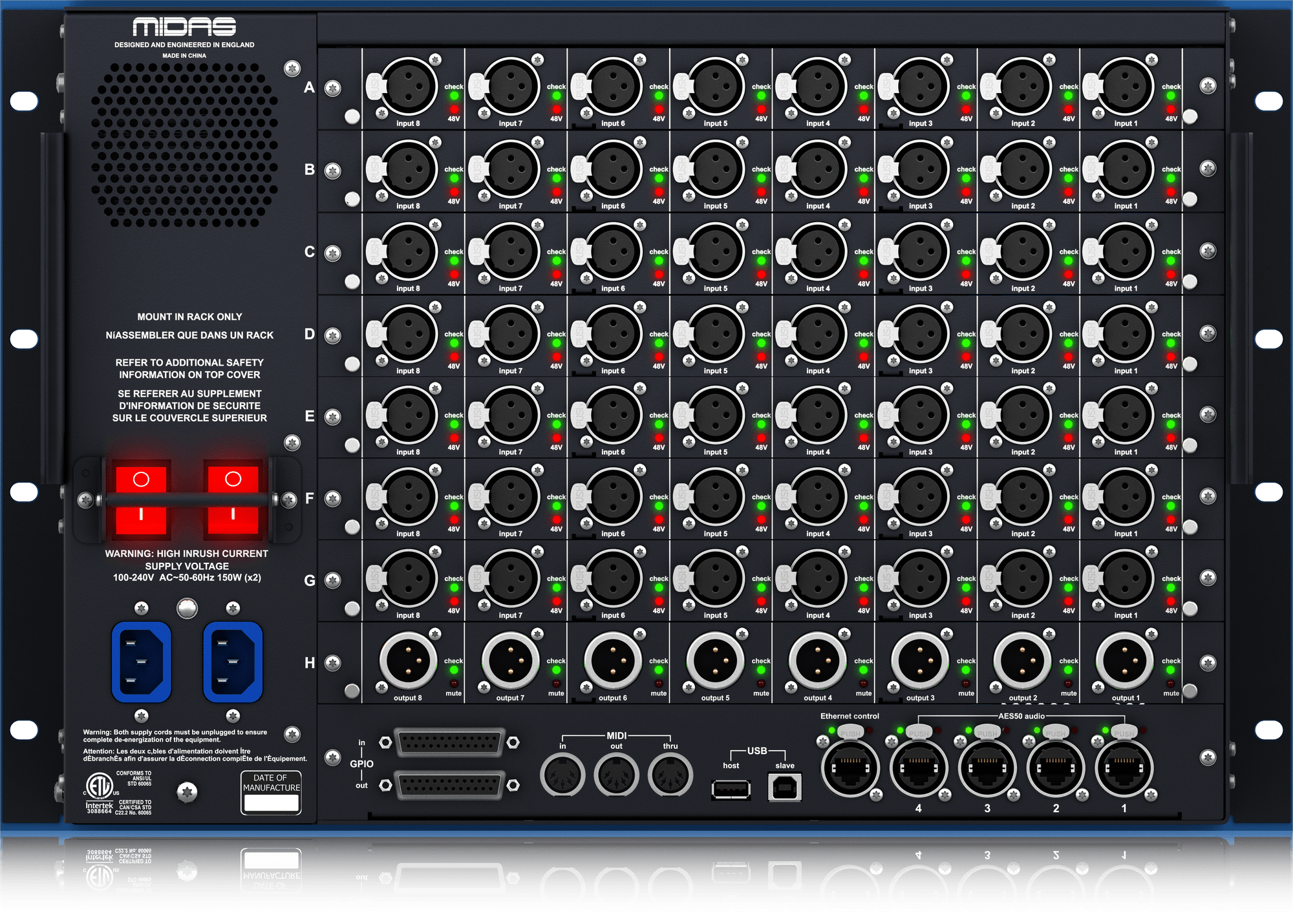

Four AES50 network ports support redundant connections back to the console, with remote operation up to 100 m on CAT5/5e cable. Two opto-isolated GPIO 25-pin D-type connectors allow external device control — intercom, video, lighting cues — and MIDI In, Out and Thru round out the show-control toolkit. Front-panel LCD and console-side control mean every parameter is recallable from either end of the snake.

Built for the Road

A rugged 7U rackmount chassis and dual-redundant auto-ranging universal switch-mode power supplies make the DL351 reliable in the most demanding portable applications. Industry-standard RJ-45 connectors on every AES50 port keep wiring familiar to any touring crew. Designed and engineered in the U.K.

• Up to 64 inputs + 64 outputs via 8 DL4 card slots
• 24-bit / 96 kHz audio
• 4 AES50 network ports (redundant)
• 2 opto-isolated GPIO + MIDI In/Out/Thru
• 7U rackmount, dual-redundant universal PSU
