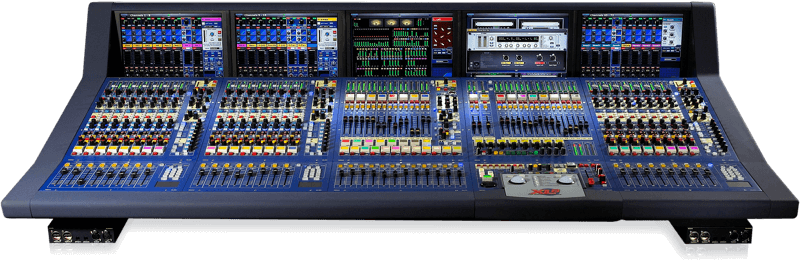

XL8-5CC-TP

The Install Version of the XL8 Live Performance System has been specifcially configured to be cost effective for permanent installations. The I/O XLRs are replaced by high-density D-type connectors. Each of the four remote DL451 24-channel in and 24-channel out I/O boxes can be separately placed up to 100m from the stage router unit, which can itself be up to 500m from the control surface. The DL444 I/O cards in the DL451 frame each have 8 channels of remote controlled MIDAS mic preamps with 2.5 dB steps as well as 8 line-level outputs. This version is ideally suited to theatres, multipurpose venues, house-of-worship and touring applications where 5-way active mic split may not be required.
